Today’s electronics industry is rapidly evolving, where flex PCB(flexible printed circuit board) has become a must have technology. It changes the way about how we design and manufacture electronic devices, as these flex circuits can be bend, fold, and conform to three dimensional spaces. In the future days, flex PCBs will continue to provide innovative solutions for various industries as electronics become smaller, lighter and more complex. Therefore, if you are an engineer or designer trying to optimize your electronic products, understanding the fundamentals of flex PCB technology is imperative.
What Is Flex PCB?
Flex PCB or FPCB is an electronic component where circuit patterns are integrated onto a thin, flexible base material. This core technology exploits the flexibility of polyimide or polyester based dielectric materials and the integration of conductive traces to deliver a versatile circuit platform. Their unique construction allows for reliable electrical connectivity and mechanical flexibility, making them ideally suited for space constrained designs and applications where traditional rigid boards would be impractical or impossible to apply.
Types of Flexible PCBs

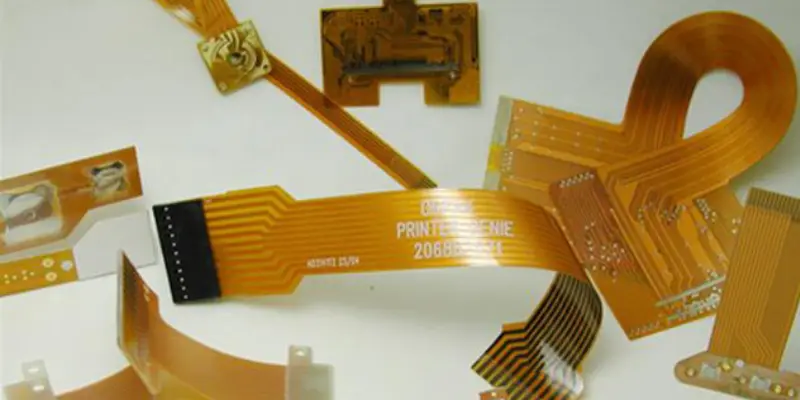

Flexible printed circuit boards can be categorized into several distinct configurations, each serving specific design needs and applications:
- Single-layer flex PCBs: Featured withone conductive copper layer on a flexible substrate, these PCB are suited for applications where the PCB is frequently bent and the budge is limited. Their simple design permits efficient mass production and provides an alternative to wire harness.
- Double-layer flex PCBs: Theyuse conductive copper layers on both sides of the substrate, interconnected through through plated-through holes (PTHs) or vias. By these design, the circuit density gets enhanced while staying relatively simple manufacturing processes. Reliable and lightweight nature makes them popular in space constrained applications.
- Multilayer flex PCBs: These consist of three or more conductivelayers, typically containing up to ten layers interconnected by PTHs or vias per layer. These sophisticated circuits accommodate high-density routing requirements in compact spaces that make them quite appropriate for complex electronic systems.
- Rigid-flex PCBs: This kind of flexible PCb boards combineflexible and rigid sections onto a single board and uniting them through PTH technology. The hybrid approach reduces interconnection points, thereby improving overall reliability.
- HDI flex PCBs: HDI(High-Density Interconnect) flexible PCBs represent the state of the art of flexible circuit technology with ultra high density circuitry and micro via structures. They facilitate the integration of very advanced ICs in small space, and achieve superior electrical performance.
The Structure and Materials of Flex PCBs

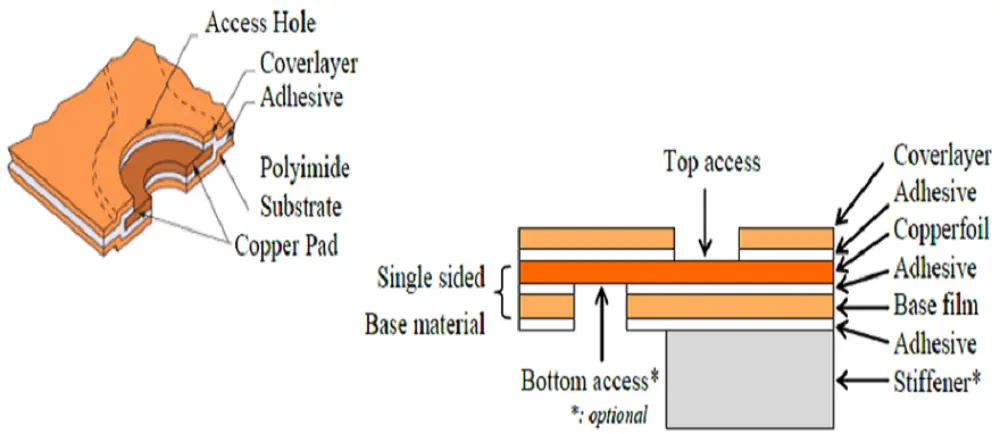

Flexible printed circuit boards are composed of several critical elements, each plays different roles to achieve the high electrical performance and mechanical flexibility. Below we introduce the main components of a single-layer Flex PCB and explain the materials used in each part:
Dielectric Substrate Film
The substrate forms a basis and support for the PCB, providing structural support as well as electrical isolation. The most common material used for flex PCB substrate is polyimide (PI), with its excellent thermal stability and chemical resistance, and it’s well suited to high performance applications. For lower demanding applications, polyester (PET) is also used as an economical alternative.
Electrical Conductors
The conductive layer, typically made of copper foil, forms the circuit traces. For applications requiring repeated bending, rolled-annealed copper is the first choice because of its superior flexibility and finer grain structure. And the copper layer thickness can ranges from ultra thin (e.g. 1/2 oz) to standard (1 oz) according to electrical requirements.
Protective Finish (Coverlay)
The circuit’s conductive parts are shielded by a protective layer composed of polyimide film and adhesive. Like solder masks on rigid PCBs, the coverlay protects the flexible circuit from mechanical damage as well as moisture and contaminates and allows for flexibility.
Adhesive Materials
Layers of the flexible circuit boards are bonded together by adhesives and isolated from each other by them. Epoxy and acrylic adhesives are used commonly, based largely on their thermal performance and chemical resistance. Adhesive thickness and type are tailored to meet certain design requirements for durability and flexibility.
Advantages of Flex PCB
- Space and Weight Optimization: Flexible PCBs significantly reduce system bulk by eliminating the need for rigid boards and wire harnesses. Their ultra-thin profile, which can be as slim as 0.1mm, enables up to 60% space savings compared to traditional PCB solutions. This characteristic is particularly valuable in portable electronics and aerospace applications where every millimeter and gram matters.
- Design Flexibility/3D Configurations: Flex circuits can bend, fold, and twist to conform to virtually any shape, allowing designers to utilize space efficiently in three dimensions. This flexibility enables innovative solutions for complex product designs and allows circuits to be routed through tight spaces that would be impossible with rigid boards.
- Enhanced Reliability: By eliminating the need for multiple connectors and solder joints, flexible PCB significantly reduce potential failure points. Their unified construction provides consistent electrical performance and minimizes the risk of connection failures due to vibration or thermal stress.
- Dynamic Movement Capability: These circuits can withstand repeated flexing without compromising performance, making them ideal for applications requiring continuous movement. Whether in folding displays or robotics, flex PCBs maintain reliable electrical connections even under constant motion.
Disadvantages of Flex PCB
- Higher Initial Costs: The manufacturing process for flexible PCBs requires specialized materials and equipment, resulting in higher initial tooling and setup costs compared to rigid PCBs. This makes them less economical for low-volume production runs.
- Complex Design Requirements: Designing flex PCBs demands specific expertise to account for factors like bend radius, material stress, and layer stackup. Engineers must carefully consider mechanical stress points and ensure proper circuit routing to prevent failures during flexing.
- Manufacturing Challenges: Production of flexible boards requires stricter process controls and more sophisticated equipment than rigid boards. This complexity often leads to longer lead times and potentially higher defect rates during initial production runs.
- Limited Repair Options: Once manufactured, flexible PCB boards are notably difficult to repair or modify. Their flexible nature and specialized materials make rework challenging, often requiring complete replacement rather than repair when issues arise.
What Are the Applications of Flex PCB?
Flex PCBs have become integral components across numerous industries, leveraging their unique characteristics to solve complex design challenges:
Consumer Electronics: Modern devices demand increasingly compact solutions, making flex PCBs essential in personal electronics. These circuits play a crucial role in the development of slim smartphones, enabling complex internal connections while maintaining device thinness. In the wearable technology sector, flex PCBs enable comfortable, ergonomic designs for devices like smart bands and health monitors.
Automotive Solutions: The automotive sector heavily relies on flexible PCBs for implementing sophisticated electronic systems. These circuits facilitate seamless integration of various sensors throughout the vehicle, supporting advanced safety features and driver assistance technologies. From dashboard displays to lighting systems, flex PCBs help automotive manufacturers achieve both functionality and space efficiency.
Healthcare Technology: The medical industry benefits significantly from flexible circuit board technology, particularly in diagnostic equipment design. These circuits enable the creation of smaller, more portable medical devices while maintaining high reliability. Flex PCBs are particularly valuable in patient monitoring equipment and implantable devices, where size and flexibility are critical design considerations.
Industrial Equipment: In manufacturing and automation, flex PCBs provide unique solutions for equipment with moving components. These circuits excel in applications requiring repeated bending or movement, such as industrial robotics and automated assembly systems. Their durability and ability to withstand mechanical stress make them ideal for harsh industrial environments where traditional rigid circuits might fail.
