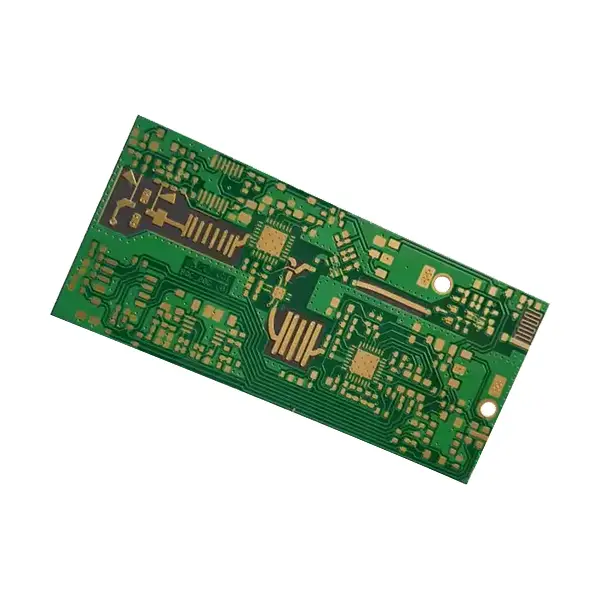

Custom Rogers High Tg PCBA

Name: Custom Rogers High Tg PCBA
Price: 42.36 USD
Availability: InStock

Price: $42.36

Product Description

These Custom Rogers High Tg PCBA combine the excellent dielectric characteristics of Rogers with high TG thermal characteristics. They are ideal in RF/microwave applications that demand precise signal integrity. These rogers high Tg circuit boards are usually used in 5G infrastructure, radar systems, and digital communication since it has low dielectric loss, controlled impedance, and an excellent thermal stability.

Shipping

Shipping costs and delivery timelines to be negotiated—please contact us for a detailed quote.

Payments and Security

Your payment is handled through a secure system; we do not retain or have access to your credit card information.

Easy Return & Refund

If your order is missing or delivered with defect, you may request a refund. Our support team will respond within 24 hours.

Specifications
Customer Reviews

Layer Counts	1-18 layers
Base Material	Rogers 4003C, 4350B, 5880, RT/duroid
Bord Thickness	0.8mm-2.0mm
Maximum PCB Size	570*1200mm
Glass Transition Temperature	Above 170°C
PCB Size Tolerance	±0.2-0.3mm
Min.Hole Size	0.1mm
Min.Line Width	4mil
Copper Weight	3oz
Solder Mask	Green, Blue, Red, White, Black
Certificate	UL , IPC-6012, RoHS, ISO 9001, ISO14001

Add a review

Custom Rogers High Tg PCBA

Rating*

0/5

* Rating is required

Your review

* Review is required

Name

* Name is required

* Email is required

Add photos or video to your review

I have read and agree to the Terms and Conditions and Privacy Policy.

* Please tick the checkbox to proceed

* Please confirm that you are not a robot

0.0

Based on 0 reviews

5 star		0%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

0 of 0 reviews

Sorry, no reviews match your current selections

Frequently Asked Questions

1. What Rogers materials does UnityPCB work with?

We use various Rogers materials including Rogers 4003C, 4350B, 5880, RT/duroid series and other high frequency laminates. We pick the best material depend on your frequency and performance specifications.

2. What’s the benefit of using Rogers material?

Rogers laminates are characterized by stable dielectric properties over a broad frequency range and low signal loss that is critical in RF design.

3. How do you ensure signal integrity in this custom Rogers high Tg PCBA?

Using controlled impedance fabrication, precision etching, thoughtful material selection and extensive test procedures to keep signal integrity in this custom Rogers high Tg PCBA.

4. What's included in your complete PCBA service?

Our turnkey PCBA service encompasses PCB fabrication, component sourcing, SMT and THT assembly, testing, and packaging.

5. Can UnityPCB handle mixed-dielectric stackups?

Yes, we have extensive experience with hybrid stackups combining Rogers materials with FR4 or other substrates to offer the best performance.

6. How long does it take to receive my order?

For prototypes, we can deliver within 3–5 working days. For mass production, this PCB will be ready in 2–4 weeks.
