Product Description
77GHz high frequency PCB is designed and manufactured with advanced low-loss dielectrics and tight thickness tolerances. It has controlled impedance, low insertion loss, and superior phase stability. Utilizing high-quality materials such as PTFE and Rogers, these boards are suited to mmWave communication, automotive radar, aerospace, and 5G modules that require the highest reliability and bandwidth at ultra-high frequencies.
Shipping
Shipping costs and delivery timelines to be negotiated—please contact us for a detailed quote.
Payments and Security
Your payment is handled through a secure system; we do not retain or have access to your credit card information.
Easy Return & Refund
If your order is missing or delivered with defect, you may request a refund. Our support team will respond within 24 hours.
| Layer Counts | 2–6 layers |
| Base Material | Rogers RO3003 / RO4003 / PTFE |
| Bord Thickness | 0.8–2.0 mm (customizable) |
| Maximum PCB Size | 570*1200mm |
| Frequency Range | Up to 77 GHz (mmWave) |
| PCB Size Tolerance | ±0.2-0.3mm |
| Min.Hole Size | 0.1mm |
| Min.Line Width | 4mil |
| Copper Weight | 3oz |
| Surface Finish | ENIG, HASL, OSP are available |
| Certificate | UL , IPC-6012, RoHS, ISO 9001, ISO14001 |

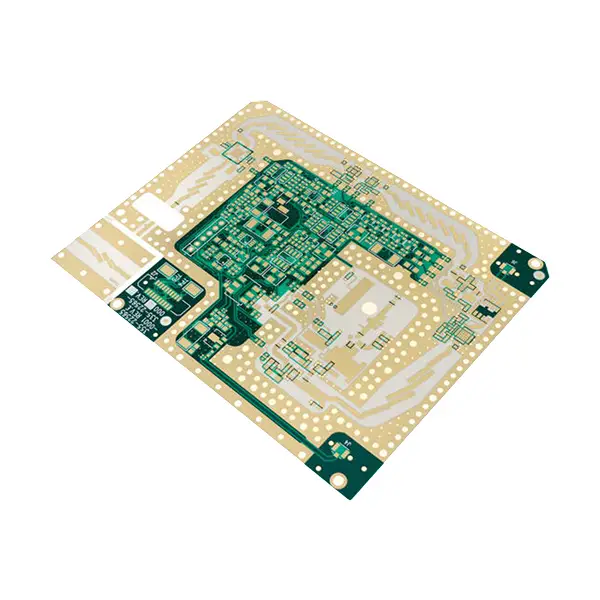

77GHz High frequency PCB
