We are committed to providing fast and reliable PCB prototyping service tailored to your unique needs.
PCB prototyping is a critical step that allows you to physically evaluate and validate your designs before full-scale production. At UnityPCB, we specialize in offering rapid and customized PCB prototyping services, ensuring your innovative ideas are thoroughly tested and optimized for success. Our expertise and advanced capabilities empower you to streamline your product development cycle, mitigating risks and enabling informed decision-making.
At UnityPCB, we can deliver high-quality PCB prototypes in as little as 24 hours, ensuring your projects stay on schedule.
Our cutting-edge facilities and rigorous quality control processes guarantee that each PCB prototype meets the highest standards of precision, reliability, and performance.
With years of experience and skilled professionals, we empower you to make right decisions prior to full production runs, eliminating the potential for costly mistakes.
We work closely with you to tailor the printed circuit board prototyping services, according to your specific design requirements and specifications.
| Number of layers: | up to 18 layers | |
| Min. PCB prototype size: | 10*10mm | |
| Max. PCB prototype size: | 570*1 200mm | |
| PCB size tolerance: | +0.2-0.3mm | |
| PCB thickness: | standard: 0.8mm-2.0mm; Non- standard: 0.3mm- 5.0mm | |
| PCB thickness tolerance: | 士0.1-0.25 mm | |
| Outer Layer Copper Thickness: | 0.5-50Z | |
| Inner Layer Copper Thickness: | 0.5-20Z | |
| Min. Line Width: | 4mil | |
| Min. Line Spacing: | 4mil - 7mil | |
| Surface Treatment: | HASL, ENIG, OSP, ENEPIG, I-Ag, l-Sn | |
| Build Time: | 1-7days |
01
Design Review
Our experts carefully review your design files to identify potential issues and provide recommendations for optimization.
02
Material Selection
We help you choose the appropriate PCB materials based on your design requirements and application.
03

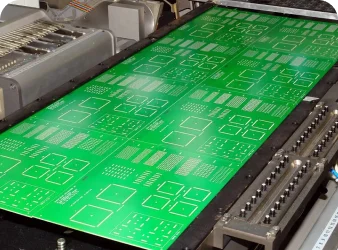

PCB Prototype Fabrication
Using advanced manufacturing techniques, we fabricate your PCB prototypes with high accuracy.
04

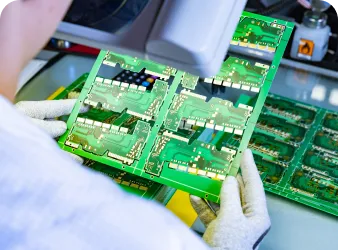

Testing and Validation
Our rigorous testing procedures ensure that your PCB prototypes meet all performance and functionality requirements.
Early Design Validation
Identify and address potential
design flaws before committing to full production.
Cost Savings
Avoid costly mistakes and
rework by catching issues early in the development cycle.
Improved Time-to-Market
Streamline your product
development process and get your products to market faster.
Risk Mitigation
Minimize the risks associated with design failures and ensure product reliability.
Iterative Improvements
Refine and optimize your designs based on prototype feedback for better performance and functionality.
PCB prototyping is the process of creating a preliminary version of a printed circuit board to test and validate its design before mass production.
PCB prototyping allows designers to identify and rectify design errors, optimize performance, and validate functionality before committing to full-scale production, thereby reducing the risk of costly mistakes.
The time for PCB prototyping depends on factors like complexity, quantity, and chosen fabrication method. It can range from a few days to a couple of weeks.
Yes, we can. Our rapid service ensures 24-hour turnaround for PCB prototypes, maintaining the highest quality standards throughout the process.
Certainly. UnityPCB offers both RoHS compliant and lead-free options for your PCB prototypes.
Commonly accepted file formats include Gerber files, Excellon drill files, and Bill of Materials (BOM).
Consider factors such as experience, capabilities, turnaround time, quality assurance processes, pricing, and customer support when selecting a PCB prototyping service.
To get a quote for our prototyping service, simply click here and fill the your project information such as board size, layer of numbers, materials, required quantity, and so on. Our team will get you back within 24 hours.
