Enhance Your Power with Thick Copper PCB: Superior Conductivity and Thermal Management.

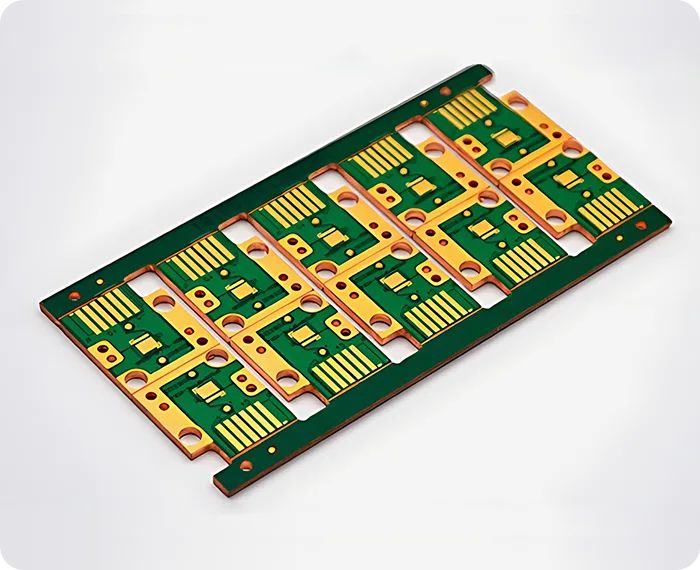

Thick copper PCB,also know as heavy copper PCB, features copper layers with a weight of 3 ounces per square foot or more on all layers. They have the following features:
| Specification | Value |
|---|---|
| Copper thickness | Max.14 oz |
| Number of layers | Up to 18 layers |
| Board thickness | 0.8- 5.0 mm |
| Min. Board size | 10*10mm |
| Max. Board size | 570*1200mm |
| PCB size tolerance | ±0.2-0.3mm |
| Min. mechanical drill | 0.1 mm |
| Min. Line Spacing | 4mil - 7mil |
| Thermal conductivity | 1.0~3.0W/m·k |
| Surface Finishes | HASL, ENIG, OSP, and others |
| Certifications | UL , IPC-6012, RoHS, ISO 9001, ISO14001 |
As one of the top thick copper PCB manufacturers , we offer qualified as well as customized PCB manufacturing services to meet the needs of customers.
Custom Design
and Prototyping
Our engineer customize aluminum PCB designs according to your requirement and provide you with efficient prototyping solutions.
Advanced
Manufacturing
We manufacture single layer to multilayer aluminum PCBs using state of the art technology to ensure high accuracy and repeatability.
Quality
Assurance

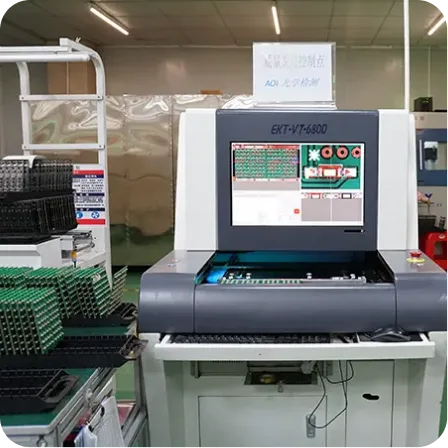

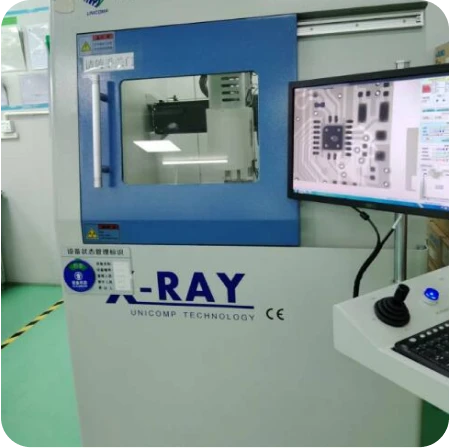

All the circuit boards to be sold are tested for AOI, X-ray, and electrical testing before delivery to our customers.
Technical
Support
Our support team is tailored to meet your needs from the very beginning of your collaboration with us to after completing your order.

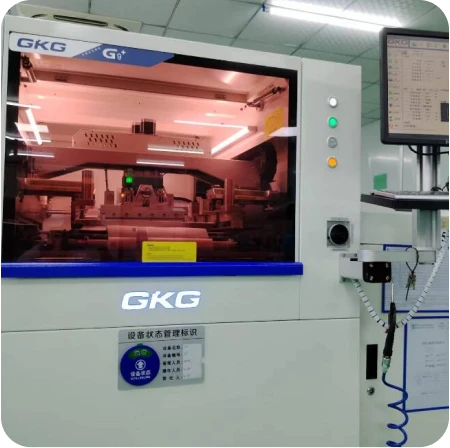

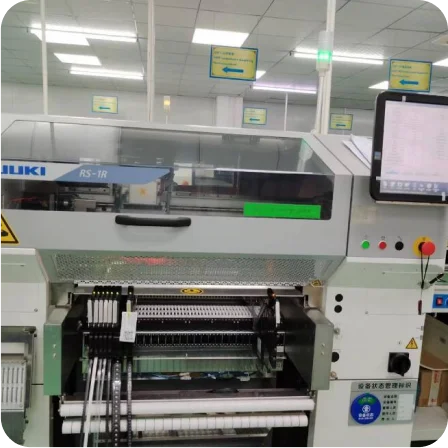

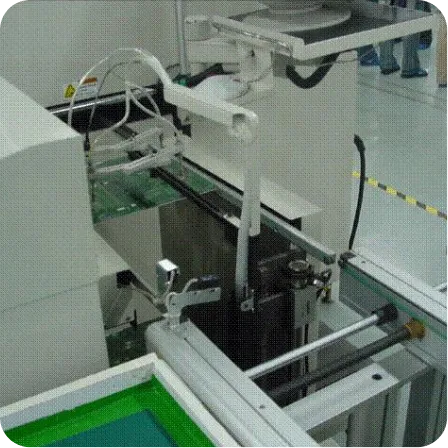

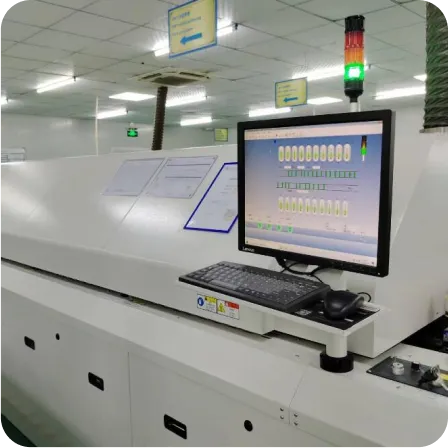

UnityPCB’s 12,400㎡ facility includes a 2,600㎡ clean room, 5 SMT lines, and 3 DIP production lines. Equipped with precision drilling machines, plating systems, and etching setups for exact circuit patterning, as well as reflow soldering machines and wave soldering systems. Our state-of-the-art X-Ray and AOI machines ensure the high-quality PCB production.
A thick copper PCB, or heavy copper PCB, is a printed circuit board where the copper foil has greater weight or thickness than standard copper foils, which usually range between 3 oz/ft²to 10 oz/ft² or even more.
The primary advantages are increased current capacity, heat dissipation improvement, mechanical resilience enhancement while facilitating electroplating adhesion in surface treatment processes.
While thick copper PCBs are primarily designed for power applications, they can be used for high-frequency applications with careful design considerations, such as controlling impedance and minimizing signal losses.
Yes, specific project requirements could be accommodated with custom specifications and designs at UnityPCB.
Yes, thick copper circuit boards are typically more expensive than standard PCBs due to the increased material costs and specialized manufacturing processes required.
Yes, UnityPCB offers prototyping to customers in order to approve their specifics before moving to mass production.
