Unlock Superior Performance with Our Ceramic PCBs - Unmatched Thermal Management and Reliability.

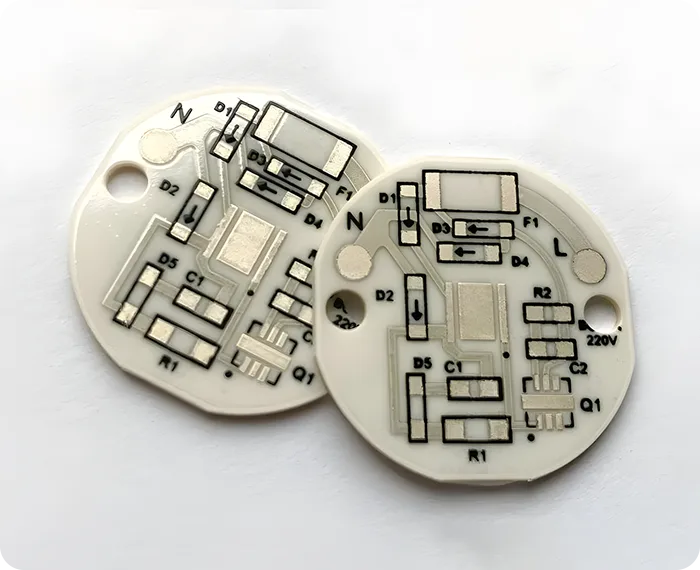

Ceramic PCB or ceramic printed circuit board is an improved type of board that has superior thermal conductivity and electric insulating characteristics for greater performance use. It has following key features:
| Specification | Value |
|---|---|
| Materials | Alumina (Al2O3), Aluminum Nitride (AlN), BeO, Si3N4... |
| Thermal conductivity | 24-180 W/M/K |
| Operating temperature | up to 850°C |
| Dielectric Constant | >9.8 (Al2O3), 8.8 (AlN), 6.5 (BeO) |
| Board thickness | 0.8- 5.0 mm |
| Min. Board size | 10*10mm |
| Max. Board size | 570*1200mm |
| PCB size tolerance | ±0.2-0.3mm |
| Copper thickness | 0.5-5 OZ |
| Surface Finishes | HASL, ENIG, OSP, and others |
| Certifications | UL , IPC-6012, RoHS, ISO 9001, ISO14001 |
As a leading ceramic PCB manufacturer, we offer top-notch PCB fabrication services designed to meet the diverse needs of our clients.
Custom Design
and Prototyping
Our engineer customize aluminum PCB designs according to your requirement and provide you with efficient prototyping solutions.
Advanced
Manufacturing
We manufacture single layer to multilayer aluminum PCBs using state of the art technology to ensure high accuracy and repeatability.
Quality
Assurance
All the circuit boards to be sold are tested for AOI, X-ray, and electrical testing before delivery to our customers.
Technical
Support
Our support team is tailored to meet your needs from the very beginning of your collaboration with us to after completing your order.
UnityPCB’s 12,400㎡ facility includes a 2,600㎡ clean room, 5 SMT lines, and 3 DIP production lines. Equipped with precision drilling machines, plating systems, and etching setups for exact circuit patterning, as well as reflow soldering machines and wave soldering systems. Our state-of-the-art X-Ray and AOI machines ensure the high-quality PCB production.
Ceramic PCBs offer superior high-temperature resistance, low thermal expansion, excellent electrical insulation properties, and high mechanical strength compared to FR-4 PCBs.
Yes, to a certain extent, since the dielectric loss and dimension changes with the temperature of the ceramic circuit boards are low, they are suitable for high-frequency circuits.
They can operate under a wide range of temperatures ranging from -40°C to 850°C.
Available surface finishes include ENIG, HASL, Immersion Silver, and OSP.
Yes, as a one-stop printed circuit board solution provider, UnityPCB provides end-to-end services including design consulting, rapid prototyping, mass production, and even post production.
You can request for a quote by contacting our sales team through our website or by filling the Quote Request form as shown below, they will respond to you with the quotation depending on your requirements.
